buy no271
stylediaphragm
brand Aylsworth
based inUSA
trademarkAylsworth
made1905
retailerUnknown
earpieceVulcanite
bodyRubber
hornVulcanite
horn dia67 mm
length338 mm
weight99 gm
size show sizeshow size
grilleNone
marksPAT JANY 24 05
ringNo
adjustablein one plane only
conditionExcellent
acquired2015
seller typeDealer
found inBrooklyn NY
countryU S A
value show valueshow value
seller noteRare example of Aylsworth's 1905 Patent Ear Trumpet. An extremely rare example of A.W. Aylsworth's 1905 U.S. patent ear trumpet (No. 780,699), the patent for which was awarded on January 24, 1905. It is marked with patent date. Aylsworth's patent incorporates a spring-mounted diaphragm that extends into the base of the trumpet bell. The mechanism is shown in the patent drawing, a copy of which can be been in the second image. The actual diaphragm is visible in the third image. The bars on the sides of the tube are unquestionably original and prevent the internal spring from being bent to a point where it would affect the functioning of the diaphragm. More extensive information about the patent specifications can be easily obtained by entering the patent number at the US Patent Office Site or by simply Googling:'Ayslworth Ear Trumpet'. Length: 13.5in or 33.75 cm.We have been dealing in antique medical instruments, including ear trumpets, for more than three decades and this is the first example of an Aylsworth we have owned; more significantly, we cannot locate another example in any book, article or museum collection.
commentSeems to be VERY rare, I am unaware of a similar example
read more link
shape flare
boxed no
gwrok yes
bay 5

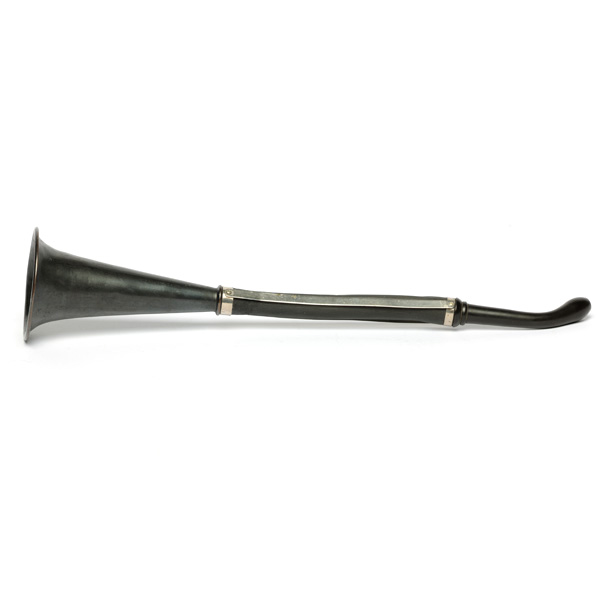

picture shows diaphragm ear trumpet @ EarTrumpets.com
overall view of ear trumpet
horn view of ear trumpet
earpiece view of ear trumpet
three quarter view of ear trumpet
detail view of ear trumpet
detail view of ear trumpet
marks view of ear trumpet
